How to Make a Silicone Mold (for a climbing hold)

Creating silicone molds for climbing holds involves several steps to ensure a precise and durable result. Here's a basic step-by-step guide:

Steps:

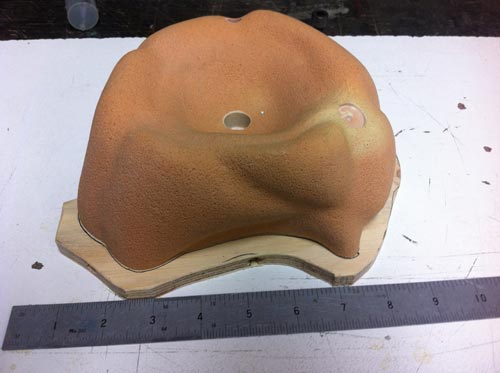

  1. Create a Prototype: Start with a climbing hold prototype. This can be sculpted from clay or carved from foam. Ensure that the prototype has the desired texture and features.How to Make a Silicone Mould

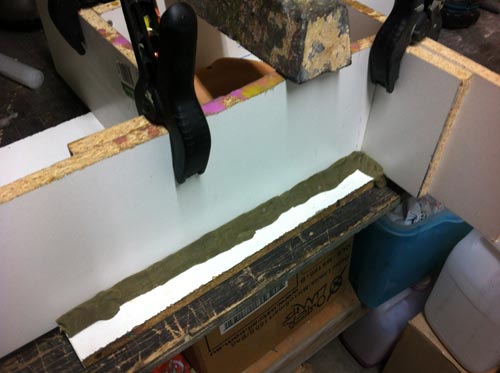

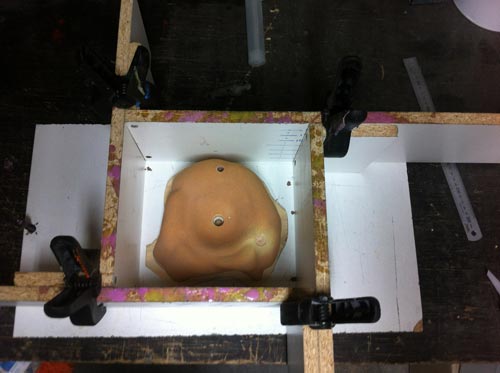

  2. Build a Mold Box: Construct a mold box around the climbing hold prototype. The box should be larger than the prototype to allow space for the silicone mold. Use materials like wood or plastic to create a containment structure.  Seal the bottom of the box on the outside so that it does not leak.  Ensure the surface is level.How to Make a Silicone Mould

  3. Prepare the Prototype:  Attach to the bottom of the box so that it does not move and if you used foam; float up to the surface when covered in silicone.

  4. Mix and Pour Silicone Rubber: Measure the required amount of silicone rubber according to the manufacturer's instructions. Mix the components thoroughly in a container, ensuring that there are no air bubbles. Pour the silicone rubber mixture over the climbing hold prototype within the mold box.How to Make a Silicone Mould

  5. Degassing (Optional): If you have access to a vacuum chamber, degas the silicone rubber mixture to remove any trapped air bubbles. This step ensures a smoother and more accurate mold.

  6. Curing: Allow the silicone rubber to cure according to the manufacturer's recommendations. This process typically can take minutes to hours.  Ensure that the mold is kept in a stable position to prevent deformities during curing.

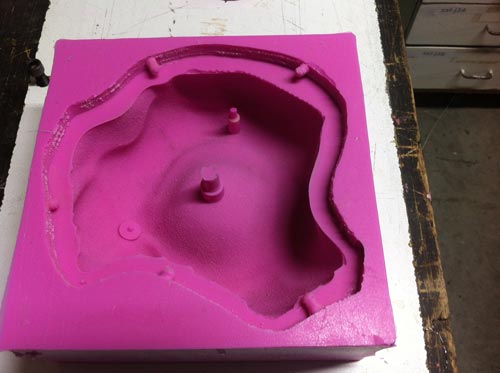

  7. Remove Mold Box and Prototype: Once the silicone rubber has fully cured, carefully remove the mold box. Gently separate the silicone mold from the climbing hold prototype.  If a foam prototype was used you can expect it to be destroyed during this process.   Clean out your new mold and it is uready to be cast with your chosen material.How to Make a Silicone Mould
